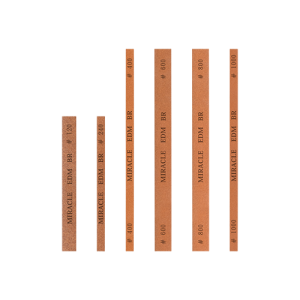

由高密度且耐磨 WA 磨粒經由特殊樹脂加工而成。具有良好的切削力且磨損較小，不易因磨削而變形。適用於細部研磨、粗加工到半精加工的修飾。
用途 : 一般模具、鑄鐵模及放電加工後的表面研磨。
粒度
#120、#180、#240、#320、#400、#600、#800、#1000、#1200
尺寸
1x10x100、3x6x100、3x6x150、3x13x150、5x13x150、6x6x150
EDM-BR 應用對照表
| 模 具 種 類 | |
| 塑膠模 | |
| 鑄鐵模 |
|
| 橡膠模 |
|
| 壓鑄模 |
|
| 適 用 材 質 | |
| 較硬材質金屬 |
|
| 較軟材質金屬 | |
| 一般金屬 | |
| 鋁 |
|
| 研 磨 用 途 | |
| 粗加工 |
|
| 普通加工 | |
| 精加工 | |
| 放電加工後 | |
| 研 磨 方 法 | |
| 乾式研磨 |
|
| 濕式研磨 | |

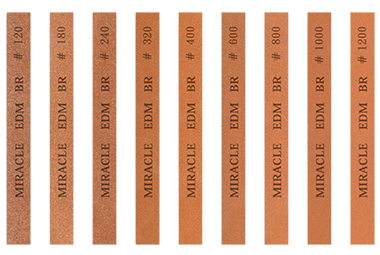

尺寸: 1 x 10 x 100mm (扁平形)
| #120 | #180 | #240 |
#320 |
#400 | #600 | #800 | #1000 | #1200 |
| PS-EDM-BR110100-120 | PS-EDM-BR110100-180 | PS-EDM-BR110100-240 | PS-EDM-BR110100-320 | PS-EDM-BR110100-400 | PS-EDM-BR110100-600 | PS-EDM-BR110100-800 | PS-EDM-BR110100-1000 | PS-EDM-BR110100-1200 |
尺寸: 3 x 6 x 100mm (扁平形)
| #120 | #180 | #240 |
#320 |
#400 | #600 | #800 | #1000 | #1200 |
| PS-EDM-BR36100-120 | PS-EDM-BR36100-180 | PS-EDM-BR36100-240 | PS-EDM-BR36100-320 | PS-EDM-BR36100-400 | PS-EDM-BR36100-600 | PS-EDM-BR36100-800 | PS-EDM-BR36100-1000 | PS-EDM-BR36100-1200 |

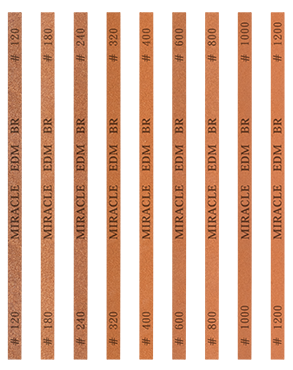

尺寸: 3 x 6 x 150mm (扁平形)
| #120 | #180 | #240 |
#320 |
#400 | #600 | #800 | #1000 | #1200 |
| PS-EDM-BR36150-120 | PS-EDM-BR36150-180 | PS-EDM-BR36150-240 | PS-EDM-BR36150-320 | PS-EDM-BR36150-400 | PS-EDM-BR36150-600 | PS-EDM-BR36150-800 | PS-EDM-BR36150-1000 | PS-EDM-BR36150-1200 |

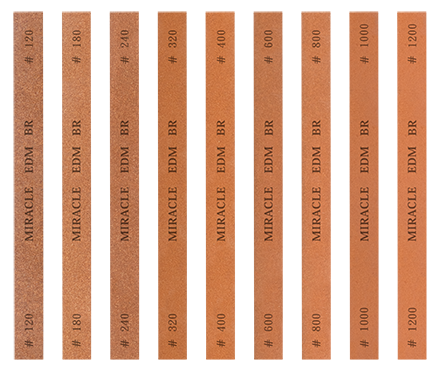

尺寸: 3 x 13 x 150mm (扁平形)
| #120 | #180 | #240 |
#320 |
#400 | #600 | #800 | #1000 | #1200 |
| PS-EDM-BR313150-120 | PS-EDM-BR313150-180 | PS-EDM-BR313150-240 | PS-EDM-BR313150-320 | PS-EDM-BR313150-400 | PS-EDM-BR313150-600 | PS-EDM-BR313150-800 | PS-EDM-BR313150-1000 | PS-EDM-BR313150-1200 |
尺寸: 5 x 13 x 150mm (扁平形)
| #120 | #180 | #240 |
#320 |
#400 | #600 | #800 | #1000 | #1200 |
| PS-EDM-BR513150-120 | PS-EDM-BR513150-180 | PS-EDM-BR513150-240 | PS-EDM-BR513150-320 | PS-EDM-BR513150-400 | PS-EDM-BR513150-600 | PS-EDM-BR513150-800 | PS-EDM-BR513150-1000 | PS-EDM-BR513150-1200 |
尺寸: 6 x 6 x 150mm (方形)
| #120 | #180 | #240 |
#320 |
#400 | #600 | #800 | #1000 | #1200 |
| PS-EDM-BR66150-120 | PS-EDM-BR66150-180 | PS-EDM-BR66150-240 | PS-EDM-BR66150-320 | PS-EDM-BR66150-400 | PS-EDM-BR66150-600 | PS-EDM-BR66150-800 | PS-EDM-BR66150-1000 | PS-EDM-BR66150-1200 |
